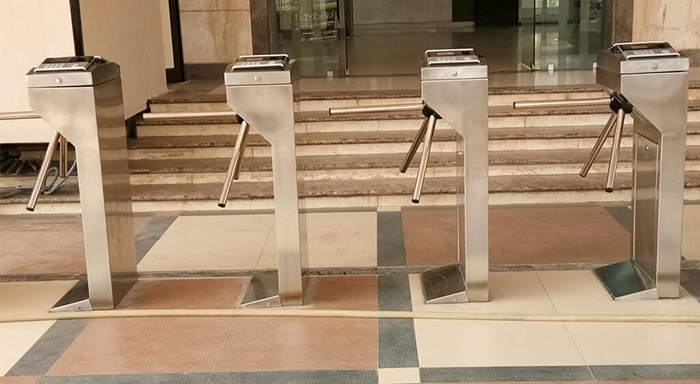

Tripod Turnstiles
Heavy-duty electronically controlled turnstile can be equipped for automatic revenue collection systems. Uniquely upgradeable so that the turnstiles will remain for decades as revenue systems
| 24-volt operating system |
| Fail lock or fail-safe |
| Heavy-duty pull type solenoid |
| Dry contact relay |
| 12 volt or 24 volt pulse relay |
are changed. Wear and corrosion resistant. High security vault. Large captured ticket capacity. Extremely fast. Exceptionally low maintenance. Extremely long service life. Designed for the look of modern automatic fare collection systems. Three rotor sections provide a comfortable passage while still maintaining high security performance. Units are available with mechanical or electrical operation, in either one or two way operation, with any combination of fail lock or fail secure.
| For Electro Mechanical | Solenoid locking mechanism- 3 X 120 degree indexing |
| For Automatic | Motor: 0.5NM/ 230v (Fully automatic) |
| Rotation/Type | 120 degree stop (Tri-arm) |
| Drop Arm | When a signal come through the alarm input of the turnstile, the arm folds. When alarm signal cut down, the arm comes back to normal position. |
| Power | 230 VAC +/- 10% single phase |
| Frequency | 50 Hz |
| Duty Cycle | 100% |
| Power Consumption | 30 Watt |
| Operation | Bi-directional |
| Walkway/Passage Clearance | 500 MM |
| Passage control | Passage to be controlled in one or either direction |
| Locking | Mechanism to prevent the turnstile rotating in the opposite direction once it has traveled 25 degree past the rest position |
| Self centering mechanism | With hydraulic damping to ensure head always rotates quietly and smoothly to the neutral position |
| Action lock | Positive action lock which prevents two passage at one time Through Put 40 person per minute without access control 15- 20 per Minute with access control |
| Integration (Input) | With any access control device like smart card Reader and / or Finger Print Reader (biometrics based Access Control System Input required: Potential free |
| Intelligence | Built-in logic control |
| Installation | Fixed to Concrete Floor by means of Anchor bolts, supplied with the Turnstile |
