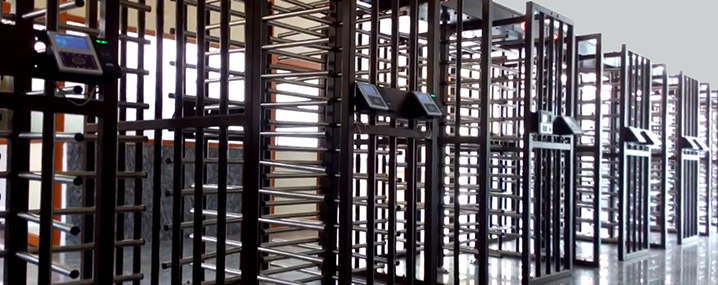

Full Height Turnstiles

full-height-turnstiles

Arms : Hot dip galvanized steel tubing, wall thickness of 0.105″ and 1.31″ O.D. Arm Ends Spun closed under heat and pressure, for a smooth safe finish.

Heavy-duty electronically controlled turnstile can be equipped for automatic revenue collection systems. Uniquely upgradeable so that the turnstiles will remain for decades as revenue systems are changed. Wear and corrosion resistant. High security vault. Large captured ticket capacity. Extremely fast. Exceptionally low maintenance. Extremely long service life. Designed for the look of modern automatic fare collection systems. Three rotor sections provide a comfortable passage while still maintaining high security performance. Units are available with mechanical or electrical operation, in either one or two way operation, with any combination of fail lock or fail secure.

Full height turnstiles are recommended for use when absolute entrance or exit security is required, especially in unguarded locations. Used either as stand-alone units or as part of an integrated system, your full height turnstiles can be engineered to meet all your security and control requirements

Tamper-resistant and weatherproof, full height turnstiles offer unrivalled reliability and have been proven to withstand even the most unforgiving environments



  • Throughput: 12 to 15 persons per minute with access control.
  • Rotor Arm height from Ground: 2000 mm
  • 90 deg. stop (4 Arms)
  • Positive action lock is provided to prevent multiple persons access or exit.
  • Anti-back up device to prevent reverse rotation after 25deg.
  • The structure is made of heavy gauge mild steel round & Square pipe with epoxy powder
  • coated finish or stainless steel bars to ensure long trouble free
  • operating life and requiring minimal maintenance.
  • A Self-centered mechanism with hydraulic damping to ensure Complete rotation of the tripod head to reset position.
  • Temp. Range: -5 deg. to + 55 deg. Centigrade.
  • Power Consumption: 50 watts
  • Direction of entry: Bi-directional / Unidirectional (Controlled and free rotation).
  • This is compatible to any access-exit control/ attendance/pay roll system/ device.
  • It has side handrail to prevent forced side entry of persons.
Technology Solenoid Locking Mechanism, 3 x 120 or 4 x 90 degree indexing
Rotation/Type 120 degree stop ( tri-arm) with torque motor
Material of construction Body : SS
Internals ARMS : SS recessed into the cabinet
Power Corrosion,abrasion and rust free alloy of high strength
Frequency 230 VAC +/- 10% single phase
Duty Cycle 50 HZ
Power off 100 %
Power Consumption 30 Watt
Operation Bi – directional
Passage Control Passge to be controlled in one or either directions
Locking Mechanism to prevent the turnstile rotationg in the opposite direction one it has traveled 25 degree past the rest position
Self centering mechanism With hydraulic damping to ensure head always rotates quietly and smoothly to the neutral position
Action Lock Positive action lock which prevents two passage at one time
Through Put 40 person per minute without access control

15-20-per minute with access control

Integration ( input ) with any access control device like smart card eader and / or Finger Print Reader ( biometrices based Access Control System )

input requied : Potential free contacts or 5 volt pulse

Output ( Rotation Detection Switch ) After 100 or 450 rotation of rotot
Temperature range 5 to 55 degree C
Humidity 90% non -condensing
Intelligence Built-in logic control
Installation Fixed ti Concrete Floor by means of anchor bolts,supplied with the turnstile
